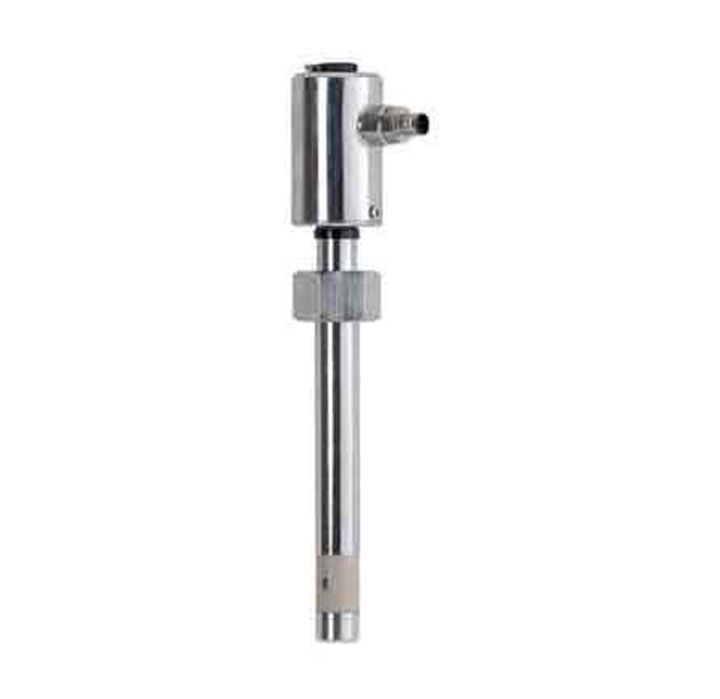

Compact Insertion Flow Meter without Indicator CS3795 ISOMAG
The insertion flowmeter CS3795 ISOMAG in compact version without indicator, which integrates sensor and converter in the same body.
Description
Technical Specifications
- Stainless steel construction with AISI316 electrodes.
- Electrical connections via 5-pole connector.
- Available in three different lengths for pipes from DN80 to DN2000
- Configuration via PC
- Pulse and analog outputs.
- Minimum conductivity value 20 µS/cm
- Power supply 18-30 V DC
- Accuracy: ± 2% of the value read.
- Max pressure 16 bar
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 30 × 100 × 100 cm |
