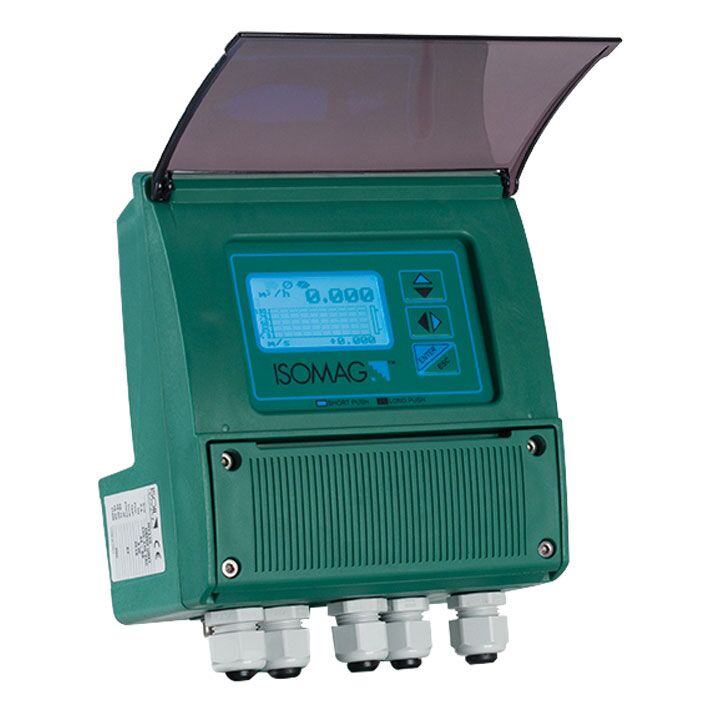

Converter with Display for Magnetic Flow Meters MV110W ISOMAG
DESCRIPTION
The MV110W converter for magnetic flow meters is the basic version of the MV110 model, specifically designed for the world of water or for those applications that require a measurement with simple indication with or without digital outputs.
Description
It is programmable via keyboard on the front or via PC with mini USB adapter and can be coupled to the flanged sensors or wafers of the ISOMAG line.
Available functions:
- Low flow cut.
- Bidirectional measurement.
- Peak cutting, empty pipe, alarm limit etc.
Technical Specifications
- Accuracy: ± 0.8% of the read value (± 0.4% of the optional read value).
- Repeatability: ± 0.2%
- Flexible mounting to view the display from above.
- Housing material: Nylon loaded with 15% fiberglass or Aluminum.
- Protection IP 67 (on request IP68)
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 30 × 100 × 100 cm |
