Description

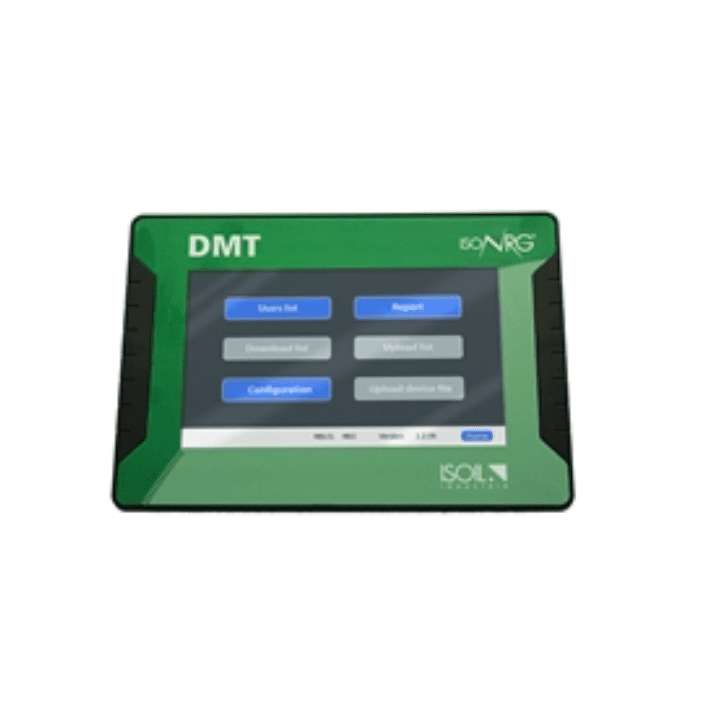

The 7” TFT touch screen display ensures easy-to-handle on-site operation without the need of a PC. Because it contains a Web server, the instrument can also be remotely operated via either
a direct telephone link (GPRS) or an Intranet/Internet network.
It can be operated with every web browser which reproduces the operating display of the instruments and allows protocol files to be created.
Existing plants can be updated very simply or else expanded as required, since the DMT is totally compatible with the earlier M-Bus protocol (EN1434).
The DMT can record plant and meter data at periodical intervals inside the internal memory (4 Gb). Can be used a SD card as a removable data carrier between the DMT and a PC if the data are recorded in the internal memory.
The size of the SD memory card determines the extent of the memory available for carrying data from the DMT. The maximum capacity of the SD card is 32 GB.
All logger files are stored exclusively in CSV format (Microsoft Excel /ASCII-File /*.CSV).
The semicolon (;) is thus used for column formatting and the carriage return (CR) for a new line.
The internal memory also contains the Linux driver, language information and the configuration data for the devices.
