GENERAL DESCRIPTION

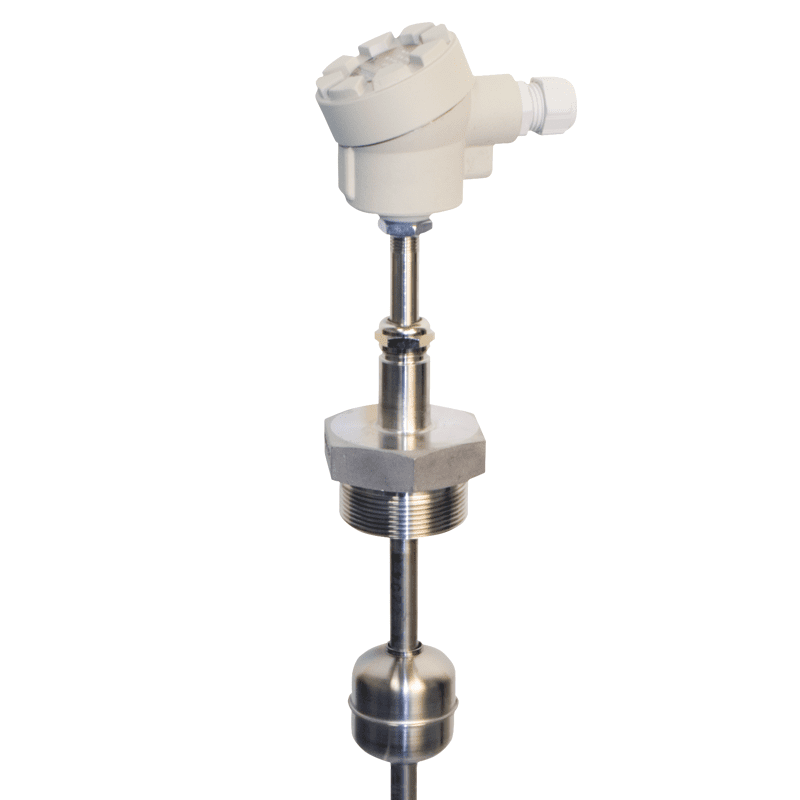

NIVOPOINT magnetic float level switches are suitable for level detection, level switching and one- or multipoint level
controlling tasks in normal as well as in hazardous areas. The device consists of a probe tube, a float incorporating a magnet
and a housing containing the connection terminals. A maximum of 5 switches can be incorporated in the probe. A sliding sleeve
on the top of the probe provides for a simultaneous ±25 mm adjustment possibility of the positioning of the switches.
The wetted parts of the level switch are made of stainless steel. The plastic coated versions are suitable for level detecting of
aggressive liquids, and the ATEX certified versions are applicable for level switching of explosive materials. Floats and process
connections can be selected according to the measured medium and the application.
The mini type NIVOPOINT magnetic float level switches are suitable for maximum level indication in small tanks. The small
size and easy mounting of the switch allows maximum level detection in appliances or tanks using process connections made
for different other purposes.
