ORAKEL
GENERAL DESCRIPTION
The ORAKEL System is ideal for all your water monitoring equipment needs, measuring both water flow and water quality at the same time. Created as a modular system, a wide range of water quality sensors can be added to measure various characteristics, such as pH, COD and suspended solids, for a truly bespoke and cost-effective solution. Two sensors can be connected as standard to one controller. However, one configured system could have up to 16 sensors connected and controlled by one controller. The ORKAEL system’s range of water monitoring equipment includes three flow meters and five different pH meters. It has a range of conductivity and TDS meters for different applications and many other sensors. All the sensors are compatible and both flow meter and water quality sensors can be configured onto one system.
Description
Optional comms packages allow Profibus, Modbus ASCII, Modbus RTU, Modbus TCP, 4-20mA analogue outputs and relays for alarms and control.

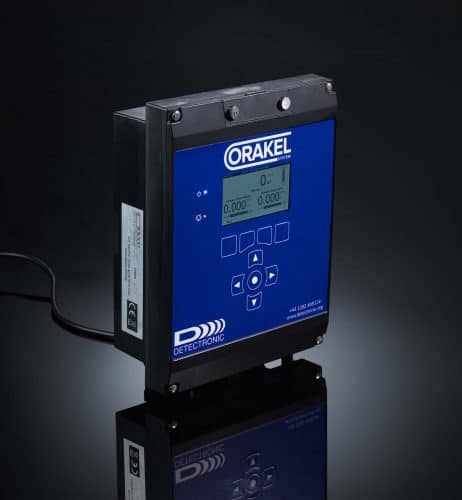

The ORAKEL controller is equipped with a display screen, readings can be taken directly from the control unit or downloaded from the internal data logger. An optional Detectronic modem allows for remote communication capabilities.
KEY FEATURES
PID Control
Full PID control suitable for nearly all dosing requirements, from simple to very complex processes.
Diagnostics
Includes a full set of instrument and measurement diagnostics.
Precision Positioning
An integrated signal oscilloscope optimises sensor positioning and diagnostics.
Easy Configuration
Includes a comprehensive internal database of pipe, fluid and lining materials.
Built-in Parameters
Built-in fluid parameters allow calculation to compensate for sound speed, density, viscosity, specific heat capacity and temperature (if temperature is known from optional temperature probe).
Flexible Measurement
Liquid can be measured in M, m3, USgal, mg, cf, bbl and Imp bbl. All measured values can be selected as flow rate per second, minute, hour or day and are automatically totalised.
Data Analysis
An optional GSM data-logger can be added and date sent to an online portal for detailed analysis.
APPLICATIONS
The ORAKEL System is suitable for use in closed, partially filled and open channels.
The wide variety of sensors that can be added make it suitable for many applications, including:
Municipal and industrial wastewater
Chemical process
Food and dairy
Paper and pulp
Pharmaceutical
Brewing
Other process industries.
OPTIONS AND ACCESSORIES
The ORAKEL controller can be connected to up to 16 sensors for an application. The following flow and quality sensors are available:
FLOW
Non contact monitoring system
Time of Flight clamp on flow meter
Area Velocity Flow meter
LEVEL
Non contact water level sensor
WATER ANALYSIS
pH
Conductivity
Chlorine
Biofilm
Dissolved Oxygen
ORP
Turbidity
TOC/COD
Suspended Solids
Paracetic Acid
Particle counter
Oil on Water
PRODUCT SPECIFICATION
Inputs
2 configurable sensor inputs; 4-20mA loop powered, 0-2 VDC, +/- 1200 mV for pH, ORP, or ISEs, PT100, pulse and Modbus. Unused inputs can be used as Outputs. Up to 8 digital inputs.
Dimensions
230 x 309 x 103mm.
Alarms
2 user configurable alarms with deadband and delay for each parameter and control output.
Thresholds
2 user configurable thresholds (for control) with deadband and delay for each measurement and control output.
PID
Configurable flow proportional PID – multiple loops.
Communication (Optional)
Modbus ASCII/RTU (RS485).
Profibus DP.
Modbus TCP (Ethernet) 2G/3G modem.
Data Logging
Internal – single parameter data log or status message log over 1 million records (downloadable data logs optional).
Outputs
2 configurable analogue outputs; 0-20mA, 4-20mA, 0-1 VDC, 0-10 VDC, 1-10 VDC.
Up to 8 SPST electromechanical relays rated 380 VAC, 6A maximum (relays are rated 6A for resistive loads and 2A for inductive loads).
Languages
Any non-pictogram by request.
Any Latin, Cyrillic, Hellenic.
Memory Backup
All user configuration is stored in non-volatile on-board flash memory.
Enclosure
ABS flame retardant IP65N, Nema 4X.
Display
4.3″, 480 x 272, 8 bit, greyscale
(4.3″, 480 x 272, full colour optional).
Weight
2kg.
Warranty
12 months from date of purchase.
Additional information
Weight | 5 kg |
---|---|
Dimensions | 30 × 100 × 100 cm |
