Description

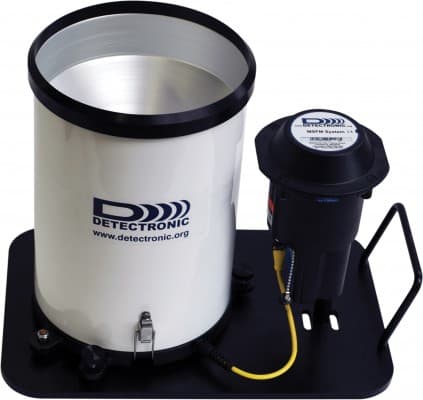

Detectronic Remote GPRS Tipping Bucket Raingauge incorporates a high quality robust, reliable, precision measuring device and Detectronic’s MSFM GPRS Data Logger.

They combine to provide a fully automated transmission of Rainfall Data to Detectronic’s remote hosting platforms such as www.detecdata-en.com

CONSTRUCTION

The body and funnel of the rain gauge are made from an aluminium alloy with a machined septum ring at the top giving an aperture of 200cm2. The tipping bucket mechanism is mounted within on an alloy base, incorporating a built-in spirit level to aid correct positioning. All measurement processes comply with the ‘Guide to Meteorological Instruments No. 8 of the WMO’.

KEY FEATURES

• Proven GPRS data transfer and collection platform
• Quad Band for Worldwide Operation
• Data Compatible with SSAS & FlowWorks
• Catchment area of 200cm2
• Resolution of 0.2mm
• Accuracy 1percent @ 26mm/hr
• Integral Spirit Level for Leveling

PRODUCT SPECIFICATION

• Bucket Size 0.2mm
• Accuracy +/- 1% at 26mm/Hr
• Capacity Unlimited
• Operating Temperature 1oC to 85oC
• Weight 3.2Kg
