Switching-mode Power Supply Module / NIPOWER®
GENERAL DESCRIPTION

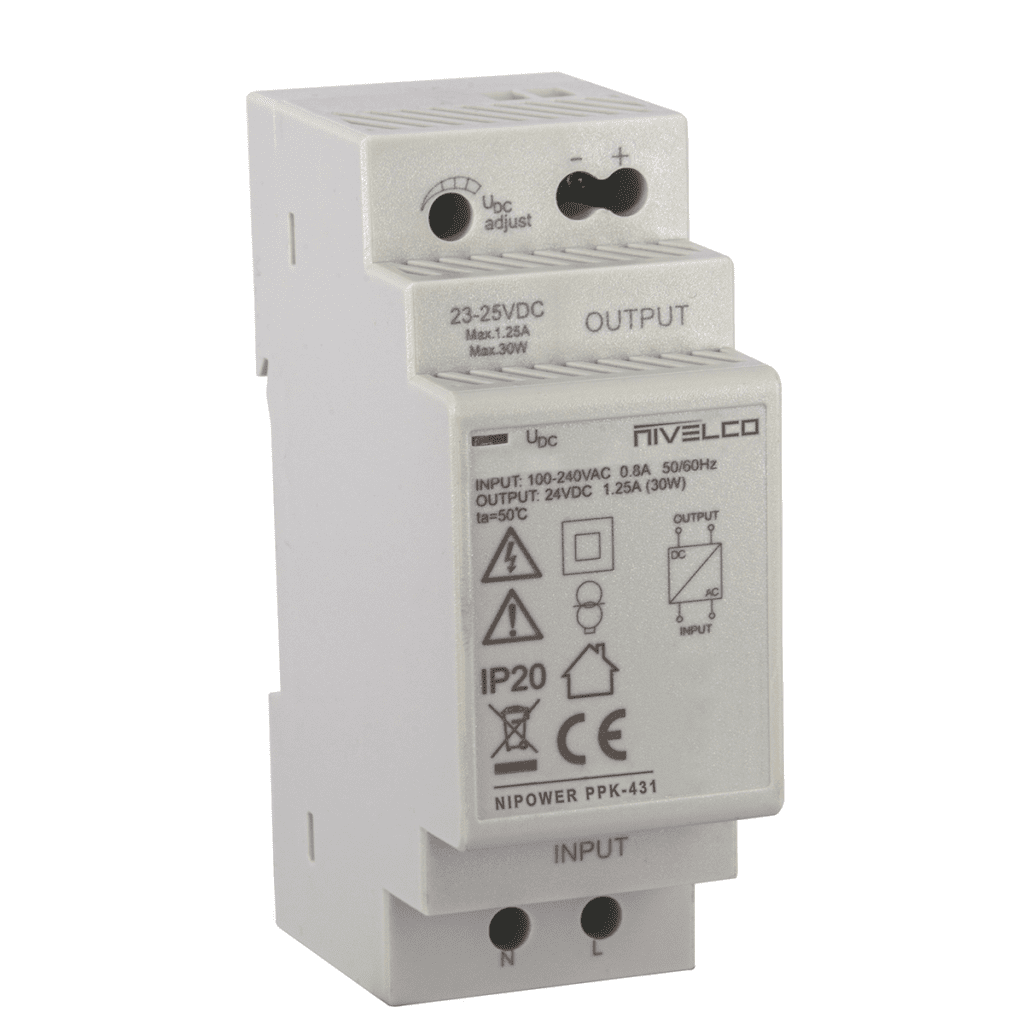

The rail mountable new NIPOWER PPK–421 and PPK–431 switching-mode power supply modules provide 12 or 24 V stabilized DC output for low power consumption devices. The output current is limited by an electronic fuse. Both devices are short-circuit protected.
Description
PRODUCT PROPERTIES
- Stabilized DC output
- Switching-mode power supply
- DIN rail mountable
- Short-circuit protection
- Overload protection
- Overvoltage protection
- IP20
APPLICATIONS
- For any transmitters
- For sensors
- For inductive, capacitive proximity switches
- For infrared sensors
- Ultrasonic Proximity sensors
SPECIFICATION
| Power supply: | 100…240 V AC / 50…60 Hz |
|---|---|
| Consumption: | max. 60 VA / 33 W |
| Output voltage: | 12 V DC (11…13 V DC adjustable); 2000 mA, 24 V DC (23…25 V DC adjustable); 1250 mA |
| Ambient temperature: | −20…+50 °C |
| Electrical connection: | Terminal, wire cross section: max. 2.5 mm² |
| Process connection: | DIN rail mountable (EN 60715) |
| Ingress protection: | IP20 |
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 30 × 100 × 100 cm |
