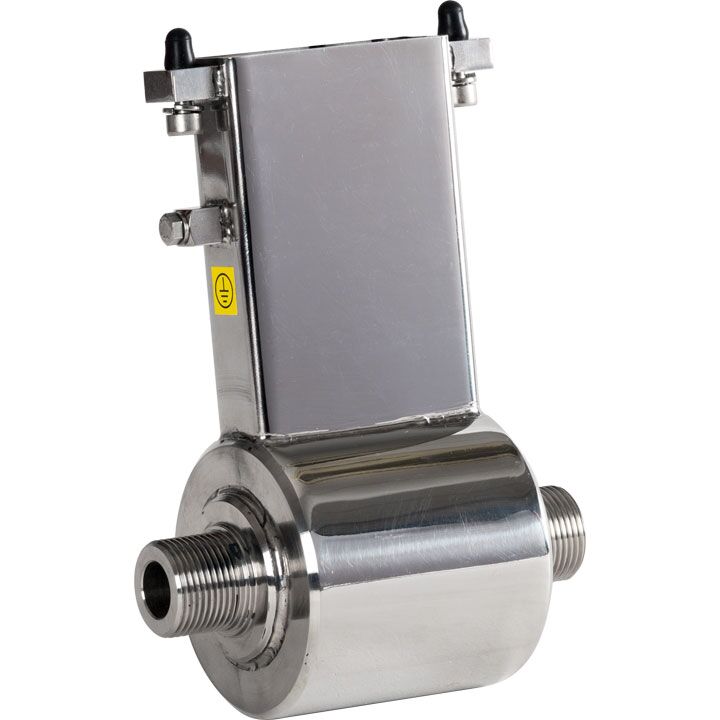

The ISOMAG MS501 microflow sensor for flow meters
The ISOMAG MS501 microflow sensor for flow meters is the smallest instrument in the series, with a wide range of applicability thanks to the variety of its attachments.
Description
Technical Specifications
- Body material: AISI304/316 stainless steel
- Nominal diameters: from DN 3 to DN 20
- Connections: Threaded / DIN11851 / Tri-clamp / Tri-clover / SMS / Flanges UNI / ANSI / JIS
- Flow rate: 0..12.500 l / h
- Nominal pressure: from PN 16 to PN 40
- Coatings: Polypropylene / PTFE
- Body: AISI304 (MS501) / Polypropylene (MS600)
- Electrodes: AISI316 / Hastelloy C276 / Platinum / Tantallium / Titanium – Pressure: Up to PN40
- Fluid temperature: -20 ÷ 130 ° C
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 30 × 100 × 100 cm |
