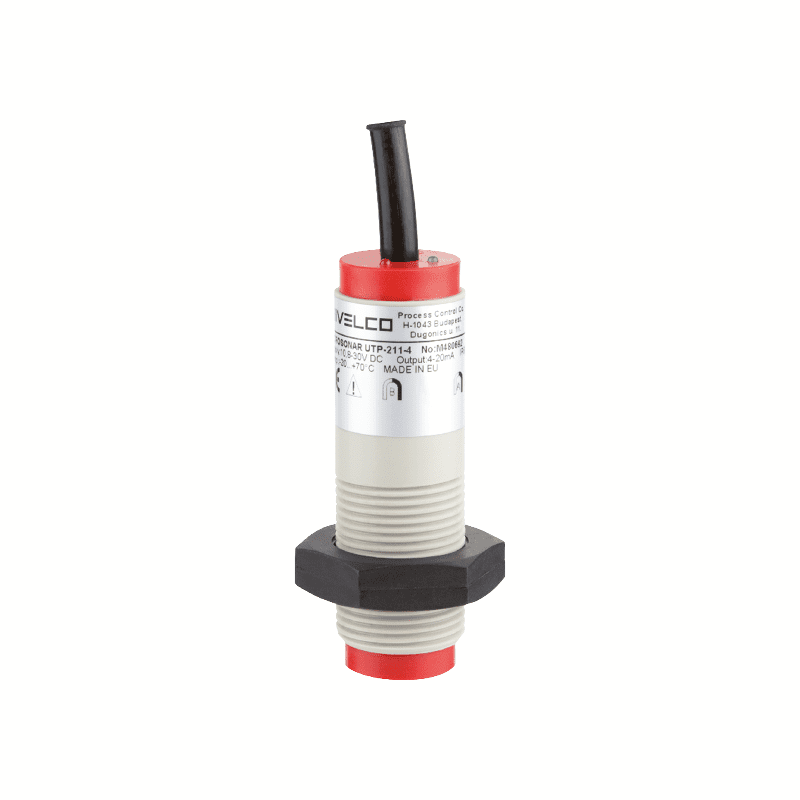

Ultrasonic Proximity Sensor / MICROSONAR®
GENERAL DESCRIPTION
MICROSONAR sensors use non-contact ultrasonic
principles to detect and measure the position of an
object. They act as proximity switches, or transmit the measurement of the distance from sensor face to the target.
For transmitter models the output signal is either 4…20 mA or 0…10 V, which can be assigned to any part of the nominal
range. Switching points of the proximity switch option can be set to any point within the range.
Description
PRODUCT PROPERTIES
- Non-contact distance metering
- Analogue or switch output
- Narrow 5° beam angle
- Fully temperature compensated
- Metal or PP body
- Magnet or cable programming
- Short circuit and reverse polarity protection
- Status indication LED
- Maintenance-free
APPLICATIONS
- Position, distance detection used in packaging equipment
- Monitoring of: filling equipment, small transport vehicles, trolleys, fork-lifts, material or object detection on conveyor belts
SPECIFICATION
| Power supply: | 10.8–30 V |
|---|---|
| Ambient temperature: | −20°C…+70°C |
| Measuring range: | 0.2–1 m / 0.4–6 m |
| Output: | 0–10 V, 4…20 mA, NPN or PNP switch |
| Ingress protection: | IP67, IP68 |
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 30 × 100 × 100 cm |
