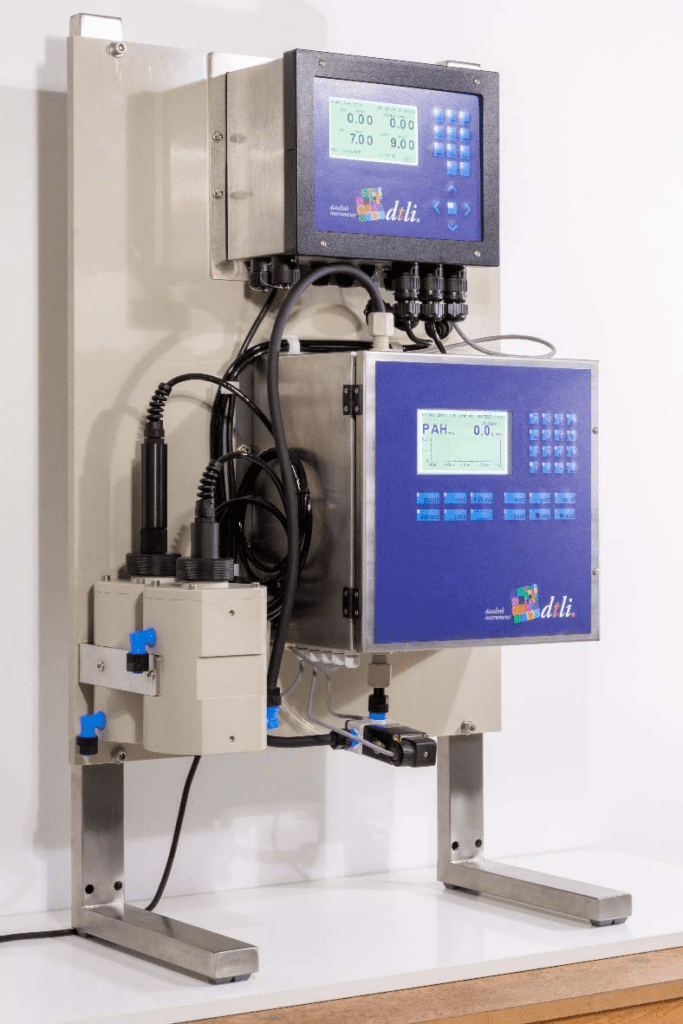

Washwater monitoring System for marine scrubbers – EGCS-WMS
Continuous monitoring and data recording for PAHs, pH and turbidity, in accordance with IMO’s RESOLUTION MEPC.259(68)
All-in-one washwater monitor
Monitor scrubber washwater according to 2015 GUIDELINES FOR EXHAUST GAS CLEANING SYSTEMS – IMO’s RESOLUTIONMEPC.259(68)
PAH measurment module
Measurement of Polycyclic Aromatic Hydrocarbons (PAH) using UV fluorescence
Turbidity and pH/T° measurement module
pH and Turbidity sensors connected to Physeo transmitter
Graphic Display
For a real-time human monitoring
Simple data transmission
- 4-20 mA analog output
- RS232 connexion for results quick download.
- RS485 connexion for long distance transfer
Description
AN OIL IN WATER ANALYZER DESIGNED TO BE CONVENIENT IN A DAY TO DAY WORK ENVIRONMENT
Rugged equipment
A robust conception suited for use in professionnal environment:
- Solid cases
- Resistant opening system
- Display screen and mechanical keyboard can be used with gloves or with wet hands and are resistant to water splashes
Graphical display
- Access of the measurement history as digital or graphical display.
- Choose the display time range (hour / day / week / month / year)
- Follow on-going measurement cycle.
Simple and convenient
Quick acces to main features:
- Start a measurement
- Stop on-going measurement cycle
- Start / stop a cleaning cycle
- Measurement history.
Easily measure any sample using a manual measurement through the sampling pump.
Adapted sampling system
Depending on the site configuration, choose a suitable sampling mode:
- Solenoid valve (pressurized water inlet)
- Peristaltic pump
Mains power supply / 12V battery
- Mains connection for a fixed installation
The internal battery makes the system resilient to power outages. - Operation on 12V battery for use on an isolated site (autonomy: approximately 100 measurements).
Datalogger
- Recording of measurements with date and time on a static memory.
- Capacity of 10,000 measurements.
- RS232 port for serial communication
- Data transfer to PC via an RS232-USB converter, in a format compatible with spreadsheet software (Excel, LibreCalc, etc.)
Additional information
| Weight | 5 kg |
|---|---|
| Dimensions | 30 × 100 × 100 cm |
