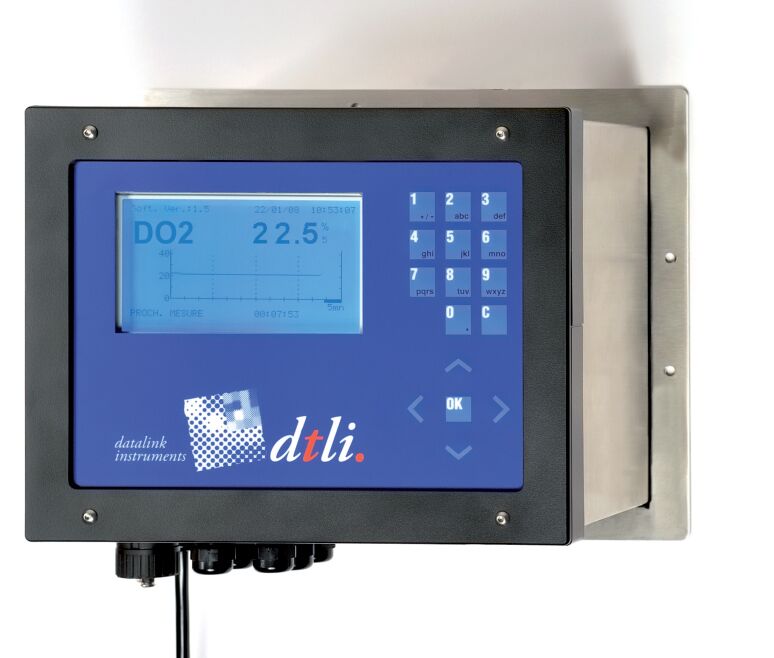

Water monitoring – Physéo datalogger and transmitter

Compact transmitter for online measurement of physico-chemical parameters in water : pH, temperature, dissolved oxygen, conductivity, water level, etc.

Up to 4 parameters simultaneously

Digital or analog sensors.

pH, temperature, dissolved oxygen, conductivity, water level, etc.

Simple adjustment and use

An integrated computer provides supervision of the measurement functions, which makes the various adjustment operations very simple.

Measurement results in the unit of your choice

for example in ppm DO2 or % sat DO2 for dissolved oxygen.

Automatic probe cleaning

For each probe, an automatic cleaning cycle can be defined. This cycle consists of the controlled activation of a control relay of an external cleaning system.

Description

A RUGGED TRANSMITTER DESIGNED TO BE CONVENIENT IN A DAY TO DAY WORK ENVIRONMENT

Rugged equipment

A robust conception suited for use in professionnal environment:

  • Solid cases
  • Resistant opening system
  • Display screen and mechanical keyboard can be used with gloves or with wet hands and are resistant to water splashes

Graphical display

  • Access of the measurement history as digital or graphical display.
  • Choose the display time range (hour / day / week / month / year)
  • Follow on-going measurement cycle.

Simple and convenient

Quick acces to main features:

  • Start a measurement
  • Stop on-going measurement cycle
  • Start / stop a cleaning cycle
  • Measurement history.

Easily measure any sample using a manual measurement through the sampling pump.

Adapted sampling system

Depending on the site configuration, choose a suitable sampling mode:

  • Solenoid valve (pressurized water inlet)
  • Peristaltic pump

Mains power supply / 12V battery

  • Mains connection for a fixed installation
    The internal battery makes the system resilient to power outages.
  • Operation on 12V battery for use on an isolated site (autonomy: approximately 100 measurements).

Datalogger

  • Recording of measurements with date and time on a static memory.
  • Capacity of 10,000 measurements.
  • RS232 port for serial communication
  • Data transfer to PC via an RS232-USB converter, in a format compatible with spreadsheet software (Excel, LibreCalc, etc.)

A COST-EFFICIENT SOLUTION FOR REAL-TIME WATER MONITORING

Equip your facility for a long time with analyzers built to last

In contrast with planned obsolescence, our devices are built to last, to be easily maintained and repaired when needed.
Make significant savings in money and time over the long term :

  • Product design and component sourcing driven by sustainability
  • Helpful and responsive support and maintenance service
  • 2 years manufacturer’s warranty

Additional information

Weight 5 kg
Dimensions 30 × 100 × 100 cm
